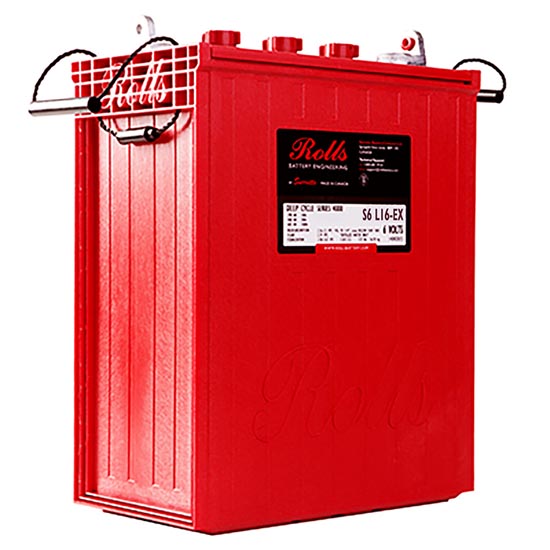

Rolls Surrette S6 L16-EX (S6-L16-EX) Solar Battery
6 Volt, Three (3) Cell
Rolls Surrette S6 L16-EX (S6-L16-EX) Stationary Batteries for Solar Panel
(Photovoltaic), Inverter, Renewable Energy and Alternative (Alternate) Energy
Applications. Deep Cycle Battery for Standby (Stand By) Applications.
The Rolls Surrette S6 L16-EX (S6-L16-EX) deep cycle batteries feature the same thick plates as
the Rolls 5000 series batteries. This provides a higher lifespan usually found in industrial size
batteries but in a much smaller and familiar L-16 (L16) group size. The model S6 L16-EX (S6-
L16-EX) is a 6 Volt battery with a capacity of 503 amp Hrs. @100 Hr. rate or 357 amp Hrs. @20
Hr. rate. The model SS6 L16-EX (S6-L16-EX) is unsurpassed in reliability. Connections are easy
due to the thick lead alloy flag terminals for 5/16 in. bolts. The battery is packaged in a lightweight
structural molded container with lifting rope handles.
The warranty for the Rolls S6 L16-EX (S6-L16-EX) battery is four (4) years free replacement.
For a single string 503 AH battery bank, you will need 2 of the S6 L16-EX (S6-L16-EX)for a 12
volt system, 4 of the S6 L16-EX (S6-L16-EX) for a 24 volt system and 8 of the S6 L16-EX (S6-
L16-EX) for a 48 volt system. Each additional string will multiply the AH capacity.
