ASK ABOUT REPLACEMENT BATTERY.

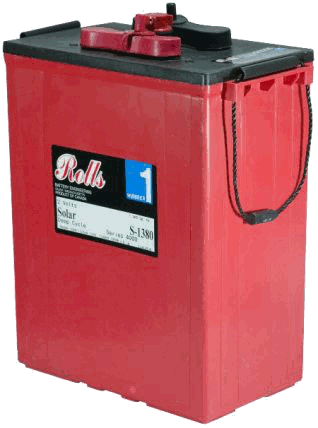

Rolls Surrette S1380 (S-1380) Battery
2 Volt One Cell, Rolls Surrette Stationary Batteries for Solar Panel Photovoltaic,
Inverter, Renewable Energy and Alternative (Alternate) Energy
Applications. Deep Cycle Battery for Standby (Stand By) Applications
The Rolls Surrette S1380 (S-1380) Deep Cycle Battery features a high cycle life with thick
positive plates and a large liquid reserve. The S1380 (S-1380) is a 2 Volt battery in al L-16H
size. Rolls Surrette takes the L-16H size battery to even higher levels by improving the capacc
ity and service life. This battery is unsurpassed in reliability. The model S1380 (S-1380) has a
capacity of 1380 amp Hrs. @100 Hr. rate or 1050 amp Hrs. @20 Hr. rate. Connections are
easy due to the thick lead alloy threaded stud. It is packaged in a light weight structural
molded container with lifting rope handles.
Warranty is 7 years ( First 24 months replacement, next 60 months prorated )
For a Single String 1380 AH Bank @100 Hr, you will need 6 of the S1380 (S-1380) for a 12
Volt System, 12 of the S1380 (S-1380) for a 24 Volt System and 24 of the S1380 (S-1380) for
a 48 Volt System. Each additional string will multiply the AH.
( ** Click to download and save on your computer. PDF format. Adobe Acrobat viewer required for viewing.)
