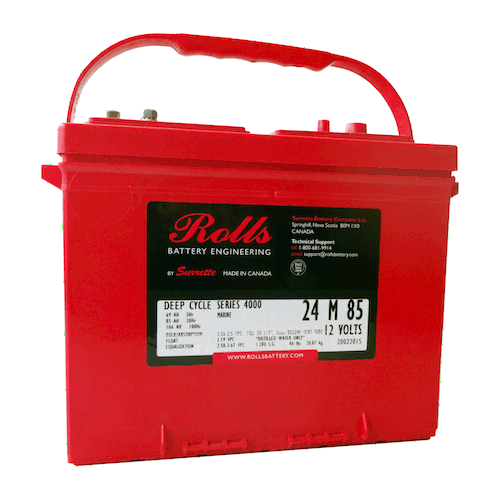

Rolls Surrette 24M85 (24-M-85) Solar Battery
12 Volt, Six (6) Cell
Rolls Surrette 24M85 (24-M-85) Stationary Batteries for Solar Panel
(Photovoltaic), Inverter, Renewable Energy and Alternative (Alternate) Energy
Applications. Deep Cycle Battery for Standby (Stand By) Applications.
The Rolls Surrette 24M85 (24-M-85) deep cycle batteries feature a high cycle life with thick positive plates and a large liquid reserve. The 24M85 (24-M-85) is a 12 Volt battery in a
Group 24 size. Rolls Surrette takes the Group 24 size battery to even higher levels by improving the capacity and service life. This battery is unsurpassed in reliability. The model 24M85
(24-M-85) has a capacity of 106 amp Hrs. @100 Hr. rate or 85 amp Hrs. @20 Hr. rate. Connections are easy due to the dual terminals (Post and Stud). The battery is packaged in a lightweight structural molded container.
The warranty for the Rolls 24M85 (24-M-85) battery is seven (7) years. The first 24 months
are full replacement. The next 60 months are prorated.
For a Single String 106 AH Bank @100 Hr, you will need 1 of the 24M85 (24-M-85) for a 12
Volt System, 2 of the 24M85 (24-M-85) for a 24 Volt System and 4 of the 24M85 (24-M-85)
for a 48 Volt System. Each additional string will multiply the AH.
